The Ultimate Guide to Vibrating Plate Compactors

Introduction

Vibrating plate compactors might not be the most glamorous tool on a construction site, but they are certainly one of the most essential. Whether you’re laying down a new driveway, preparing the ground for landscaping, or working on a road project, a vibrating plate compactor ensures that the base is solid and reliable. In this guide, we’ll dive deep into the world of vibrating plate compactors, exploring their functionality, types, and how they fit into various construction needs.

What Are Vibrating Plate Compactors?

A vibrating plate compactor is a machine used to compact different types of soil and asphalt. It uses rapid vibrations to force the soil particles closer together, creating a more stable and solid surface. These machines are essential for ensuring that surfaces are well-prepared before laying concrete, asphalt, or any other materials.

Why Are They Essential for Construction?

Without proper compaction, surfaces can shift, sink, or crack over time, leading to costly repairs. A vibrating plate compactor helps create a strong foundation by eliminating air pockets in the soil and ensuring even compaction, which is critical for long-lasting durability.

Types de compacteurs à plaque

1. Single-Plate Compactors

Single-plate compactors are designed to move in one direction and are ideal for smaller projects. These compactors are lightweight, making them easy to maneuver in tight spaces.

2. Reversible Plate Compactors

Unlike single-plate compactors, reversible plate compactors can move both forward and backward. This feature allows for more precise control and is suitable for larger projects that require a higher degree of compaction.

3. High-Frequency Plate Compactors

These compactors operate at a higher vibration frequency, making them ideal for compacting finer materials like sand or granular soil.

Key Components of a Vibrating Plate Compactor

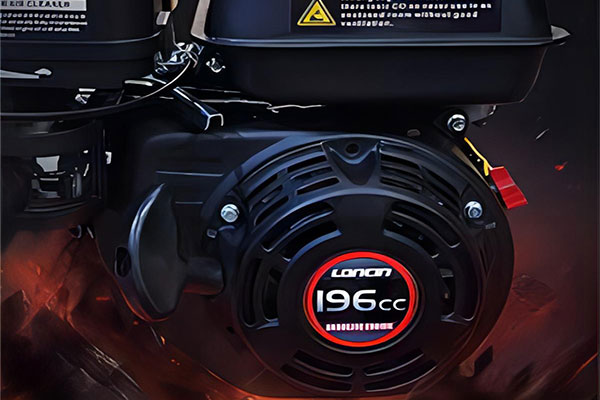

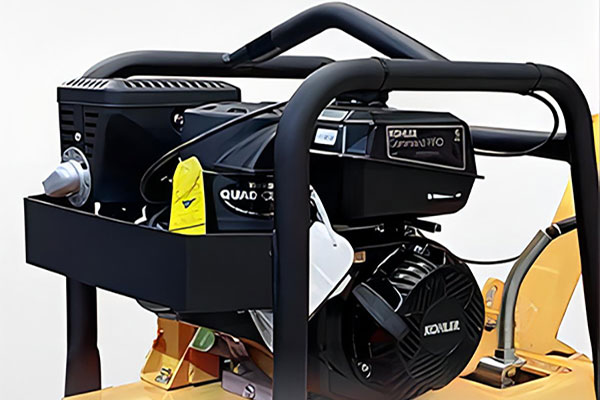

1. Engine

The engine powers the machine and provides the force necessary for the plate to vibrate. Plate compactors often run on gasoline or diesel engines, with some electric models available.

2. Vibrating Base Plate

The base plate is the flat surface that comes into contact with the ground. It vibrates rapidly, pushing the soil particles together.

3. Handle and Controls

Operators use the handle to guide the machine, and the controls allow for adjusting speed and direction.

How Does a Vibrating Plate Compactor Work?

The Science Behind Vibration Technology

Vibrating plate compactors work by using rapid vibrations to agitate the soil. These vibrations help rearrange the soil particles, filling in any gaps and forcing the particles closer together.

Impact of Weight and Vibration on Soil Compaction

The weight of the machine combined with the vibration frequency ensures optimal compaction. The heavier the machine, the deeper the compaction can reach.

Benefits of Using a Vibrating Plate Compactor

Efficiency in Compacting Soil and Asphalt

Plate compactors are incredibly efficient at compacting large areas of soil and asphalt in a short amount of time, making them ideal for big projects.

Durability and Low Maintenance

Most plate compactors are built to last, with rugged components that require minimal maintenance.

Versatility in Various Projects

Whether you’re working on paving a driveway or landscaping a garden, plate compactors can handle a variety of surfaces, including gravel, soil, and asphalt.

When Should You Use a Vibrating Plate Compactor?

Ideal Soil Types

Vibrating plate compactors are most effective on granular soils like sand, gravel, and asphalt. They are not as effective on cohesive soils such as clay, which may require different types of compactors.

Applications in Driveways, Pathways, and Landscaping

These machines are widely used for compacting the base layers of driveways, pathways, and landscaping projects to ensure a stable and durable surface.

Facteurs à prendre en compte lors du choix d'un compacteur à plaque

1. Weight and Size

The weight and size of the compactor should match the scale of your project. Heavier models provide deeper compaction.

2. Engine Power

The engine power determines how efficiently the machine can compact dense materials. Choose a machine with a powerful engine for tougher jobs.

3. Plate Size

The larger the plate size, the more ground you can cover. However, smaller plates offer greater precision for tight spaces.

4. Vibration Frequency

Higher vibration frequencies are better for granular materials, while lower frequencies work well on more cohesive soils.

How to Properly Use a Vibrating Plate Compactor

Preparing the Site

Before operating the compactor, ensure the surface is cleared of large debris. This prevents damage to the machine and ensures even compaction.

Operating the Machine Safely

Maintain a firm grip on the handles, and walk at a steady pace to avoid uneven compaction.

Ensuring Optimal Results

Make multiple passes over the surface to ensure thorough compaction. Each pass should overlap slightly with the previous one to cover the entire area.

Conseils de sécurité pour l'utilisation d'un compacteur à plaque

Protective Gear

Always wear safety gear, including gloves, steel-toed boots, and ear protection, as compactors can be loud and generate significant vibrations.

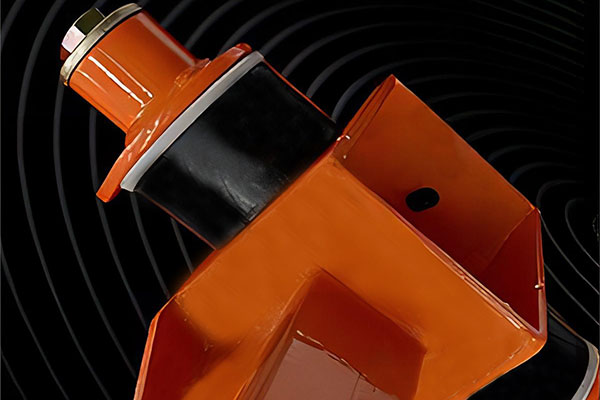

Handling Vibrations

Long exposure to vibrations can cause fatigue, so take breaks as needed and ensure you are using proper grip techniques.

Maintaining a Safe Working Environment

Keep bystanders at a safe distance, and ensure the worksite is free of hazards like uneven terrain or sharp objects.

Maintenance of a Vibrating Plate Compactor

Regular Checks and Servicing

Inspect the machine regularly for signs of wear, including the engine, plate, and vibration components.

Cleaning the Compactor

Remove dirt and debris from the base plate and other parts to prevent buildup that can interfere with the machine’s operation.

Replacing Parts

Worn-out parts, such as the vibration belt or engine components, should be replaced immediately to prevent machine failure.

Common Issues with Plate Compactors and How to Fix Them

Engine Starting Problems

If the engine won’t start, check for fuel issues or a clogged air filter. Regular servicing can prevent this issue.

Poor Vibration Output

If the machine isn’t vibrating properly, it may be due to worn vibration belts or components that need replacing.

Uneven Compaction

Uneven compaction can result from improper use or an unlevel base plate. Ensure you’re following correct operational techniques.

Top Brands and Models of Vibrating Plate Compactors

Wacker Neuson

Known for its durable and high-performance compactors, Wacker Neuson is a top choice for professionals.

BOMAG

BOMAG offers a wide range of plate compactors suitable for various applications, from small DIY projects to large-scale construction.

Husqvarna

Husqvarna’s plate compactors are reliable and efficient, offering excellent compaction performance for both contractors and homeowners.

Comparing Vibrating Plate Compactors vs. Other Compaction Tools

Vibrating Rollers

Vibrating rollers are better for larger areas but lack the precision of plate compactors.

Rammers

Rammers are more suitable for compacting cohesive soils like clay, whereas plate compactors excel on granular surfaces.

Sauts d'obstacles

Jumping jacks are highly effective for trenches and tight spaces but may not cover large areas as quickly as plate compactors.

The Cost of Vibrating Plate Compactors

Price Ranges Based on Type and Features

Prices for vibrating plate compactors can range from a few hundred to several thousand dollars, depending on the machine’s size, power, and features.

Renting vs. Buying a Compactor

For smaller, one-time projects, renting a compactor can be more cost-effective than purchasing one. However, if you frequently need compaction tools, buying may be a better investment.

Conclusion

Vibrating plate compactors are indispensable tools for creating strong, durable surfaces. Whether you’re working on a small backyard project or a large construction site, choosing the right type of compactor and using it properly can make all the difference in achieving a smooth, stable foundation. With the right maintenance and usage techniques, these machines can offer years of reliable service, ensuring that your projects stand the test of time.
