Handheld Concrete Vibrator Masterclass: 17 Expert Tips to Boost Your Construction Efficiency

Introduction to Handheld Concrete Vibrators

Dans le monde de la construction moderne, precision and durability are non-negotiable. One essential tool that ensures these outcomes is the handheld concrete vibrator. Whether you’re building a driveway, a retaining wall, or a high-rise structure, improper concrete compaction can lead to costly repairs and structural issues down the line. That’s where a handheld concrete vibrator steps in, helping you eliminate air voids, boost material density, and increase the longevity of your builds.

This masterclass covers everything from the basics to advanced pro tips that’ll help you operate a handheld concrete vibrator like a seasoned contractor.

What is a Handheld Concrete Vibrator?

A handheld concrete vibrator is a portable device used to consolidate freshly poured concrete. It works by generating high-frequency vibrations that are inserted into wet concrete, helping eliminate trapped air and ensuring the mix fills all gaps and forms completely.

Unlike large, stationary vibrators, handheld versions are compact, easier to maneuver, and ideal for medium to small construction tasks or places with limited accessibility.

Core Functions:

• Remove air pockets (entrapped air)

• Improve bonding with reinforcement bars (rebar)

• Enhance overall strength and water resistance

Why Vibrating Concrete Matters

Concrete may seem solid once poured, but it contains trapped air—up to 10% in some cases. These voids weaken the structure and can cause issues like honeycombing or cracking.

Vibrating concrete ensures:

• Increased compressive strength

• Better surface finish

• Improved rebar adhesion

• Longer lifespan of the structure

For mission-critical structures such as bridges, foundations, and columns, this step is indispensable.

Types of Handheld Concrete Vibrators

Choosing the right type of handheld concrete vibrator can make a world of difference. Let’s break it down:

Vibrateurs internes

Also known as poker vibrators, these are inserted directly into the concrete. They’re ideal for slabs, walls, and beams.

• Portable and widely used

• Efficient air bubble removal

• Variety of head sizes available

Vibrateurs externes

These attach to the formwork or external surface of the mold.

• Best for precast concrete

• No intrusion into the concrete mix

• Requires firm attachment

Vibrateurs de surface

Used on the concrete surface, especially for flatwork.

• Great for slabs and pavements

• Limited penetration depth

• Effective for large open areas

Principaux composants et caractéristiques

Understanding the anatomy of your tool helps in proper usage and maintenance.

Motor Types

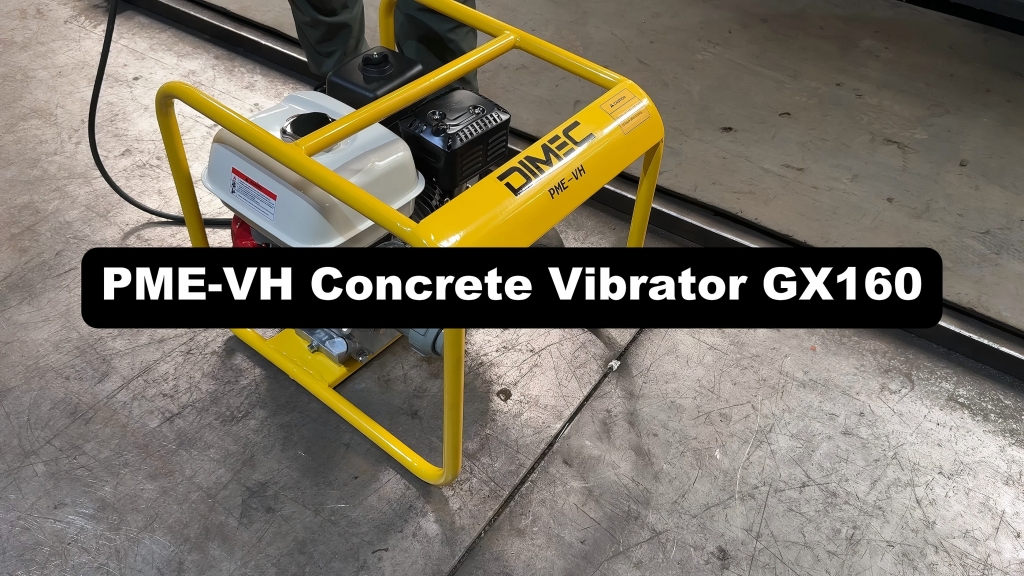

Electric motors are popular for indoor use due to lower emissions and noise, while gasoline-powered motors excel in outdoor or large-scale projects.

Shaft Length and Diameter

A longer shaft allows deeper penetration into the concrete. Choose the right length based on slab thickness.

Vibrating Head Size

Larger heads cover more area but may be too aggressive for delicate work. Smaller heads provide precision.

How to Use a Handheld Concrete Vibrator Safely

Safety isn’t optional—it’s a necessity.

Safety Guidelines:

• Wear PPE: gloves, boots, goggles, and hearing protection

• Check for electric cords and obstructions

• Keep hands away from vibrating head

• Turn off the tool before adjusting or moving it

Step-by-Step: Operating a Concrete Vibrator

1. Préparer la zone – Remove debris, check formwork.

2. Check Equipment – Inspect the motor, shaft, and head.

3. Insert the Vibrator – Vertically into concrete in intervals.

4. Hold for 5-15 Seconds – Let air bubbles escape naturally.

5. Withdraw Slowly – Avoid forming voids.

6. Repeat Overlap Pattern – Ensure full coverage.

Conseil de pro: Look for a glossy surface to know the concrete is properly consolidated.

Common Mistakes to Avoid During Vibration

Even experienced workers slip up. Here are top mistakes to avoid:

• Sur-vibration – Causes segregation of aggregate

• Too-fast withdrawal – Traps air inside

• Vibrating rebar instead of concrete – Ineffective

• Skipping corners or tight spots – Leads to honeycombing

• Not overlapping – Leaves unvibrated zones

17 Pro Tips for Using a Handheld Concrete Vibrator

1. Insert vertically to minimize air entrapment

2. Hold each insertion 10–15 seconds

3. Start from the center and move outward

4. Avoid vibrating too close to formwork

5. Use overlapping patterns for consistency

6. Don’t drag the head through the mix

7. Monitor surface appearance for air escape

8. Use smaller heads in dense rebar areas

9. Watch motor temperature on long jobs

10. Never use a faulty shaft or head

11. Practice before your first big pour

12. Use ear and eye protection always

13. Ensure cords aren’t submerged in wet concrete

14. Keep the vibrator upright during use

15. Perform maintenance after every job

16. Store in a dry, clean place

17. Read the manufacturer’s manual—yes, really!

Choosing the Right Vibrator for Your Project

Selecting the correct handheld concrete vibrator isn’t just about convenience—it’s about performance, safety, and long-term durability of your structure. Not all vibrators are created equal, and choosing the wrong model can result in poor compaction, structural weaknesses, and costly mistakes.

Facteurs à prendre en compte avant l'achat

Here’s a checklist of essential considerations before you make a purchase:

Electric vs Gas-Powered Vibrators

Match the Tool to the Task

Each type of concrete work requires a specific setup:

• Foundations and Columns: Internal vibrator with mid-sized head (35–50mm)

• Beams and Walls: Flexible shaft for depth, smaller head for tight spacing

• Slabs: Surface vibrator or screed for large flat areas

• Precast Elements: External vibrator to avoid intrusion into molds

Expert Tip: Don’t overspend on a large machine if your job is small. Opt for the most practical, efficient tool for your immediate needs.

Maintenance and Care Guide

A handheld concrete vibrator is an investment—and like all tools, it needs proper care to stay efficient. Skipping maintenance reduces lifespan, increases safety risks, and leads to uneven concrete work.

Liste de contrôle pour l'entretien quotidien

1. Wipe Down Equipment – Remove residual concrete after every use

2. Inspect the Shaft and Head – Look for cracks or wear

3. Check Power Cables and Plugs – Ensure no fraying or exposed wires

4. Lubricate Moving Parts – Refer to manufacturer guidelines

5. Stocker correctement – Cool, dry location away from dust and humidity

Dépannage des problèmes courants

Regular care ensures your tool performs optimally on every pour.

Cost Considerations and ROI

At first glance, a handheld concrete vibrator may seem like a luxury for small-scale operations. But if you factor in the costs of repairing poor concrete work, investing in one becomes a financially sound decision.

Cost Breakdown

Économies à long terme

• Reduces need for rework or repairs

• Improves structural integrity, reducing liability

• Increases productivity and job speed

• Enhances reputation with clients

ROI Tip: Many contractors report that a quality vibrator pays for itself within the first 3–5 jobs due to reduced material waste and labor time.

Considérations environnementales et de sécurité

In today’s construction industry, safety and sustainability are becoming top priorities. Handheld concrete vibrators play a vital role in both areas.

Impact sur l'environnement

• Electric vibrators produce fewer emissions

• Efficient vibration reduces excess concrete use

• Less structural waste means less landfill

Worker Safety Enhancements

• Reduces manual effort, minimizing repetitive strain injuries

• Compact models reduce the need to lean into formwork

• Less reliance on heavy machinery lowers risk of site accidents

Always choose models that meet OSHA or regional safety compliance standards. Look for built-in features like thermal overload protection, anti-vibration handles, and safety shut-off switches.

Latest Innovations in Concrete Vibration

Technology is constantly evolving—even in tools like vibrators.

What’s New?

• Cordless Battery-Powered Units: Improved battery life and torque

• Variable Speed Motors: Custom vibration frequency for different mixes

• Bluetooth-Enabled Monitoring: Get alerts on overheating or maintenance

• Eco-Friendly Designs: Low-emission motors and recyclable components

• Noise Dampening Insulation: Reduces worksite noise pollution

These enhancements are making it easier than ever to perform professional-quality work with less strain and better results.

Comparison: Handheld vs. Stationary Vibrators

Tandis que stationary concrete vibrators have their place, handheld units offer unmatched flexibility, especially for tight spaces and smaller jobs.

If you’re a contractor or builder working across multiple sites, handheld units are clearly the more adaptable option.

Case Study: Concrete Vibrator Success in High-Rise Construction

Project: 15-Story Residential Tower, Houston, TX
Challenge: Concrete honeycombing in column bases due to poor compaction
Solution: Deployed high-powered handheld internal vibrators with 50mm heads

Results:

• 90% reduction in voids

• Faster pour cycles (down from 3 hrs to 2.2 hrs per floor)

• Improved structural integrity confirmed by ultrasonic testing

• Project completed 3 weeks ahead of schedule

The foreman noted, “Switching to the right handheld vibrator saved us time, money, and a ton of headaches.”

Foire aux questions (FAQ)

1. How long should I run a handheld concrete vibrator in one spot?

You should typically run the vibrator for 5 to 15 seconds in each spot. The actual time depends on the concrete mix and the size of the vibrator head. Watch for air bubbles rising and the concrete surface leveling out — that’s your visual cue.

2. Can over-vibrating damage concrete?

Oui, over-vibration can lead to segregation, where the heavier aggregates settle at the bottom and excess water rises to the top. This weakens the structural integrity and leads to uneven curing and poor finish.

3. What size vibrator head is best for reinforced concrete with tight spacing?

A smaller head, typically 25mm to 35mm, is ideal for working around dense rebar. It allows better maneuverability without damaging the formwork or disturbing the rebar placement.

4. Is it necessary to overlap insertion points when vibrating concrete?

Absolutely. Each insertion should overlap the previous by at least 50%. This ensures uniform compaction across the pour and avoids any unvibrated “cold zones” which can lead to weak spots.

5. Can I use a handheld vibrator for large slab pours?

You can, but it’s not ideal for massive slab work. Surface vibrators or laser screeds are better suited for large, flat areas. A handheld unit works best when used in conjunction with other vibration tools for comprehensive coverage.

6. What happens if I don’t vibrate concrete properly?

Improper vibration can result in:

• Honeycombing (visible voids)

• Weak bonding with rebar

• Low strength and durability

• Poor surface finish

• Structural failure over time

That’s why vibration isn’t just optional — it’s essential for structural safety and longevity.

7. How do I clean a handheld concrete vibrator after use?

Immediately after use:

1. Wipe the shaft and head with a damp cloth before the concrete hardens.

2. Use a wire brush for stubborn residue.

3. Avoid using acidic cleaners as they may damage metal parts.

4. Lubricate moving parts lightly and store the tool in a dry location.

Conclusion

A handheld concrete vibrator is one of the most crucial tools in any concrete-related construction job. From eliminating air pockets to improving bond strength and ensuring your structures stand the test of time, its role is unmatched.

By following best practices—choosing the right type and size, operating safely, avoiding common mistakes, and applying our 17 pro tips—you can take your concrete work to a professional level. Whether you’re a seasoned contractor or an ambitious DIYer, investing in the right handheld vibrator and using it wisely guarantees stronger, more durable, and more professional-quality results every time.

As the construction industry evolves, so do the tools that power it. Staying informed about innovations, applying practical tips, and following structured procedures will ensure you maintain efficiency, safety, and quality across all your concrete projects.
